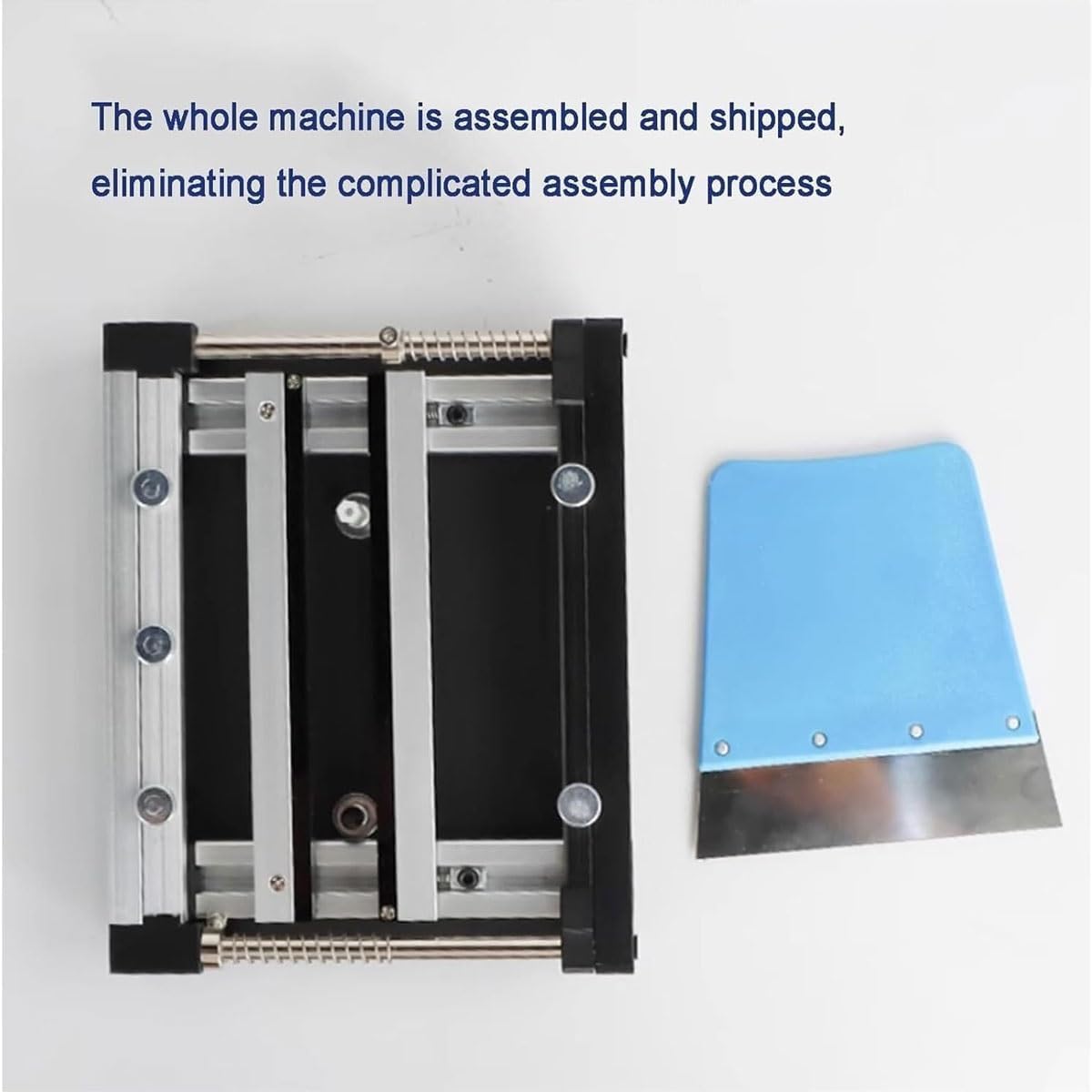

Manual Small Screen Printing Station,SMT Steel Mesh Solder Paste Printing Table,PCB Stencil Printer with Adjustable Thickness,Aluminum Alloy Body,for Precision PCB Prototyping (20cm)

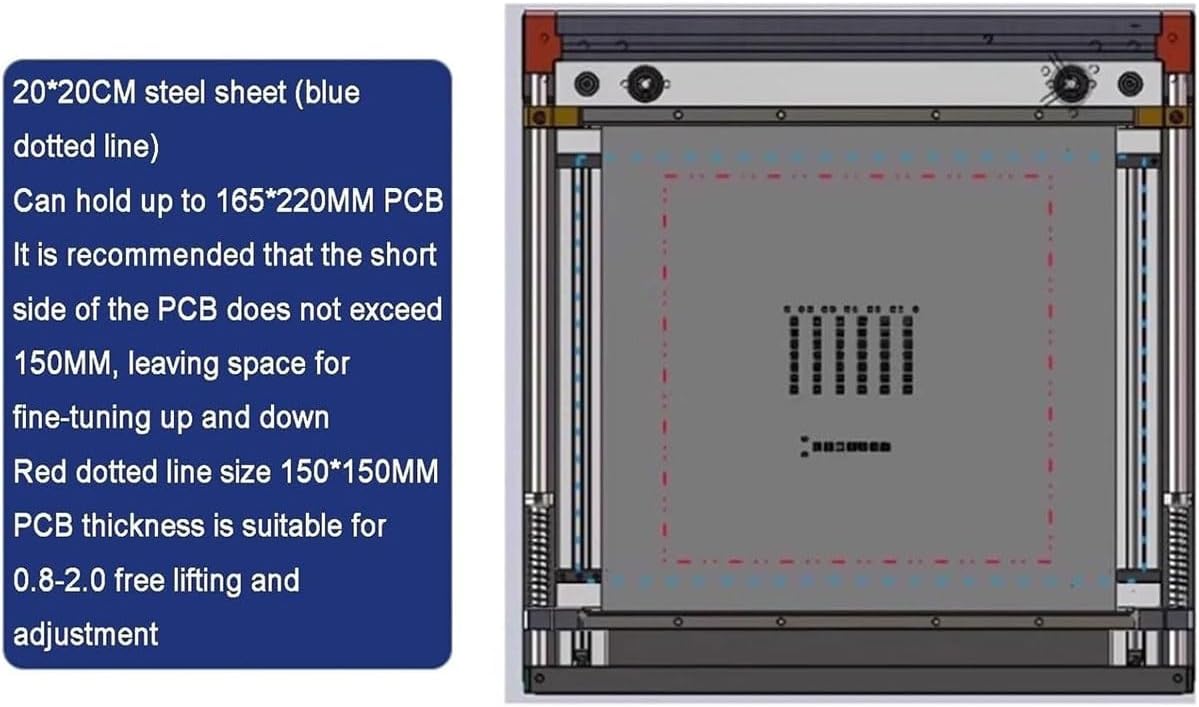

Optimized for accessibility and efficiency, this manual small screen printing station supports precise solder paste distribution through metal templates. It seamlessly adapts to diverse PCB stencil printing needs, ensuring reliable performance in controlled manual workflows. Specification: Name:Name: Manual Small Screen Printing Station Material: Aluminum alloy Printing speed: Manual control 10cm: Screen printing table size: 13.5×16.5×5cm (5.3×6.5×2 in) Maximum size of circuit board (horizontally): 6.5×12cm (2.6×4.7 in) Effective printing range: 5.5×8cm (2.2×3.1 in) Thickness adjustment: 0.8-1.6mm (default 1.2mm) Weight: 750g 15cm: Screen printing table size: 21.5×22×6.5cm (8.5×8.7×2.6 inches) Maximum size of circuit board (horizontally Horizontal): 11.5×17cm (4.5×6.7 in) Effective printing range: 10×13cm (3.9×5.1 in) Thickness adjustment: 0.8-2mm Weight: 1680g 20cm: Screen printing table size: 26×26.5×6.5cm (10.2×10.4×2.6 in) Maximum size of circuit board (horizontal): 16.5×22cm (6.5×8.7 in) Effective printing range: 15×18cm (5.9×7.1 in) Thickness adjustment: 0.8-2mm Weight: 2010g Package Includes: 1× Screen Printing Station 1× 4-inch scraper 1× Phillips screwdriver 1× Hexagon screwdriver 2× Limiting magnetic posts (only 15/20cm models have, 10cm does not) Notes: 1. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement. 2. If you have any questions please contact me and I will reply you within 24 hours

• Manual PCB Stencil Printer:Designed for small and medium batch production, this Manual PCB Stencil Printer accurately distributes solder paste onto PCB pads through metal printing templates, ensuring efficient SMT applications
• Precise Manual Control:Equipped with a knob for adjusting the substrate printing frame in all directions, speed is manually tailored to different screens, making this Manual Small Screen Printing Station highly adaptable
• Precision Printing:Featuring an excellent repeatability of ±0.01mm, this SMT Steel Mesh Solder Paste Printing Table includes positioning pins and ejector pins for easy alignment, guaranteeing accuracy in repetitive tasks
• Premium Material:The working platform is crafted from high-quality metal with honeycomb positioning holes and a thickened bottom plate, delivering sturdiness and long-lasting durability
• Intuitive Operations:Designed for accessibility, its tool-free positioning pins and simplified workflow enable swift setup, ideal for prototyping or low-volume production
